Kasama Dune 600 : Part 4 (Motor & Cable)

I choose Scorpion HK-III 4025-550KV. The motor size is so big but its look small when put into Dune 600. :-D For safely, please consider drill motor shaft. I use a hand drill tools. It make shaft look bit ugly. But it hide within pinion. Ok, everything is almost done. Last servo Align DS655 installed.…

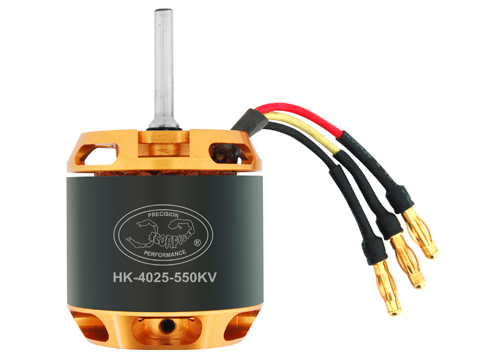

Scorpion HK-4025-550KV (6mm Shaft)

Specifications Stator Diameter 40 mm (1.56 in) Stator Thickness 25 mm (0.98 in) No. of Stator Arms 12 Magnet Poles 8 Motor Wind 14 Turn Delta Motor Wire 18 – Strand 0.29mm Motor Kv 550KV RPM / Volt No-Load Current (IO) 0.9 Amps @ 10v Motor Resistance (RM) 0.035 Ohms Max Continuous Current 65 Amps…
