Raspberry PI – Unboxing

Welcome new on-board mini size computer. The Raspberry Pi is a credit-card sized computer that plugs into your TV and a keyboard. It’s a capable little PC which can be used for many of the things that your desktop PC does, like spreadsheets, word-processing and games. It also plays high-definition video.


I also brought a acrylic case too. I don’t want to circuit short by accident. On top of the board you’ll see GPIO on top left.

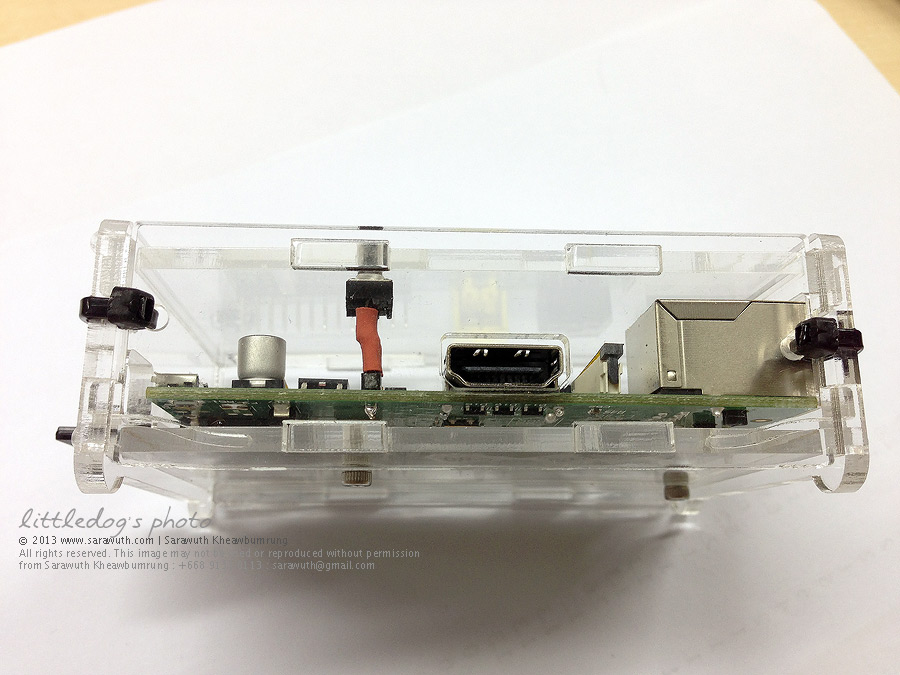

On this side of board you can plug to HDMI monitor / TV or use HDMI->VGA converter cable. And I also put a switch for reset the Raspberry PI board.

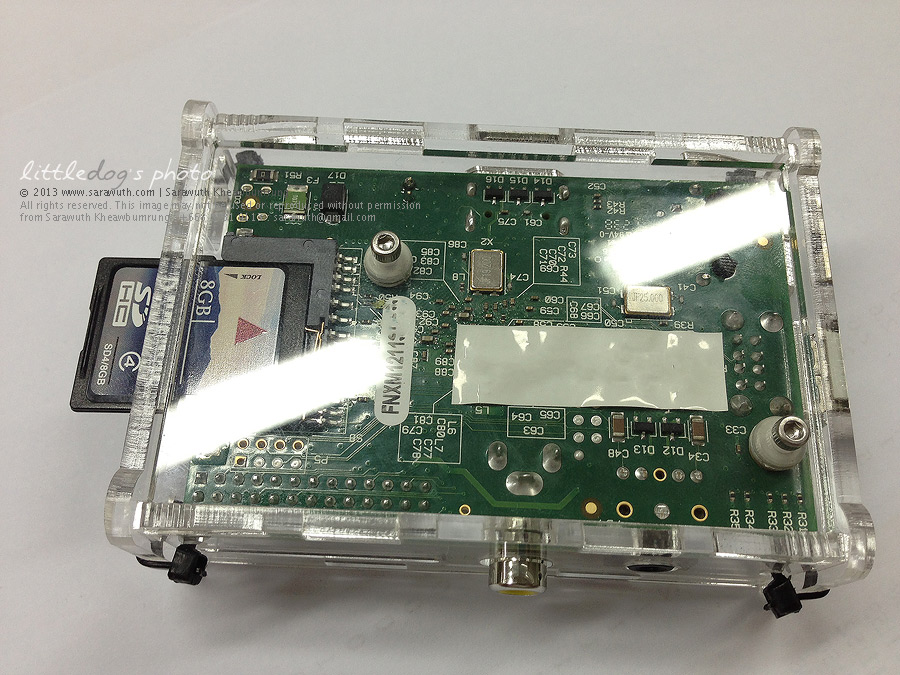

Nothing much on bottom of board. I drill two holes to secure board with acrylic plate.

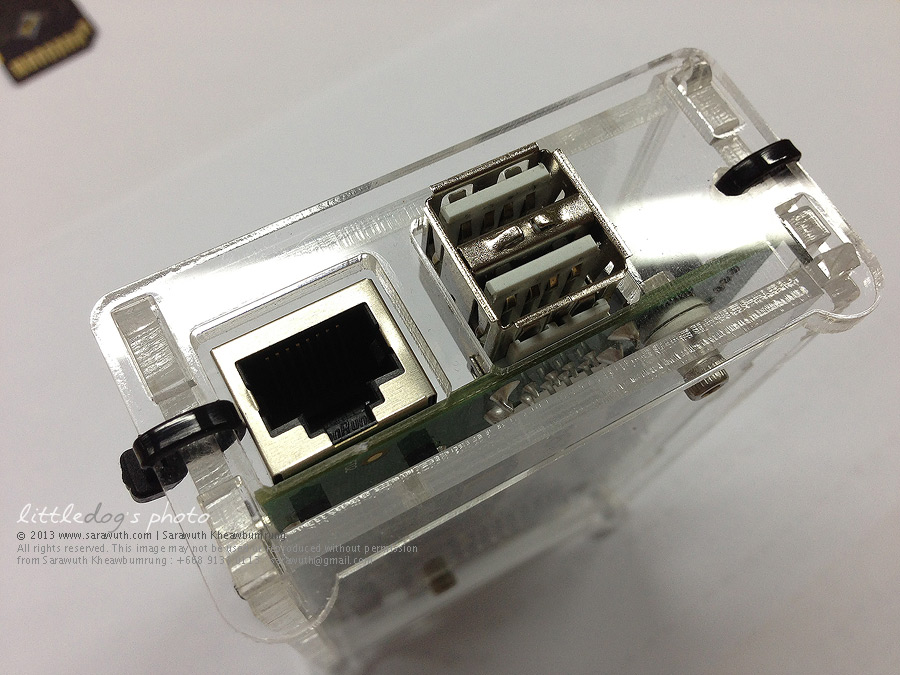

On this side, one 10/100 Ethernet port. Two USB host port.

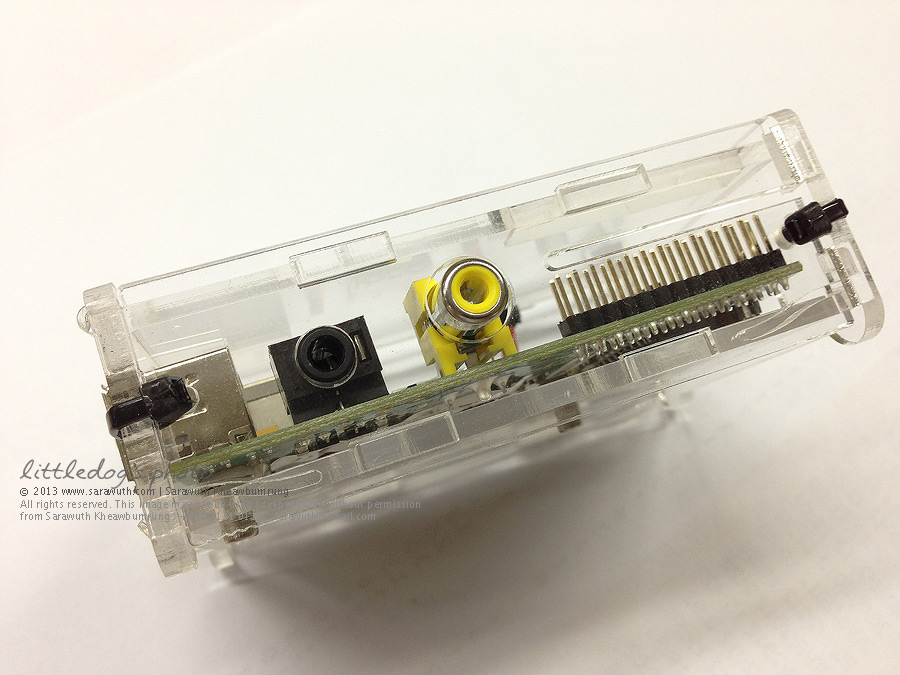

On this side. One Audio plug and one AV out plug.

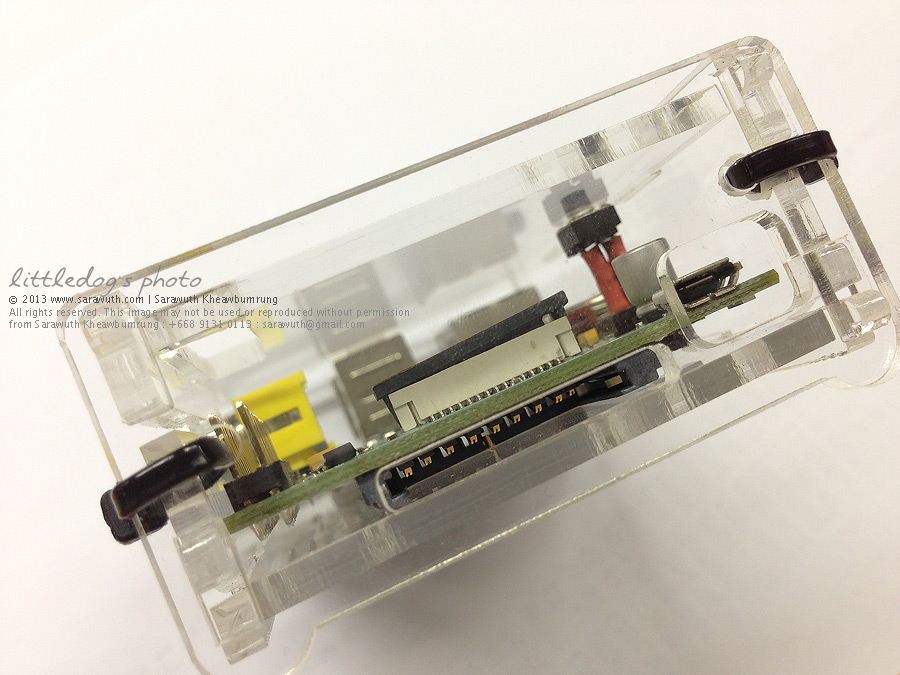

On last side one micro USB power plug, one SD Card reader.
